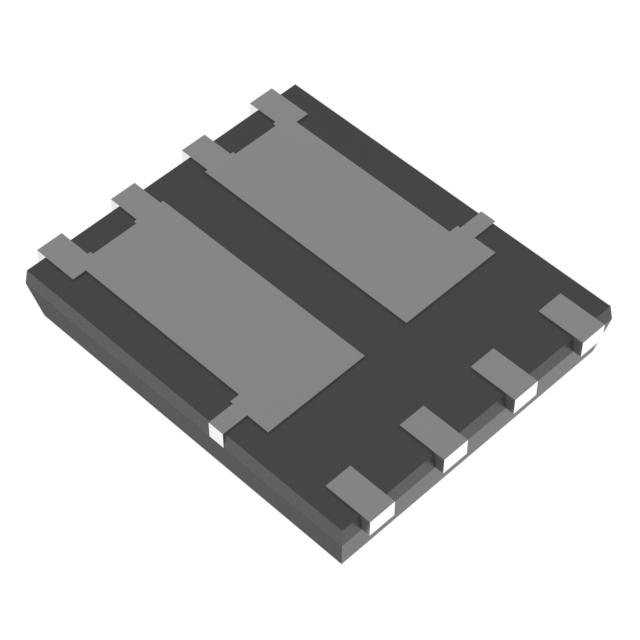

HP8KB7TB1
MOSFET 2N-CH 40V 16A 8HSOPManufacturer: Rohm Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 16A (Ta), 24A (Tc) 3W (Ta), 26W (Tc) Surface Mount 8-HSOP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3W (Ta), 26W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 24A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1570pF @ 20V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 16A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-HSOP |
Request a Quote
