RBQ20BM65ATL
DIODE ARR SCHOTT 65V 10A TO252Manufacturer: Rohm Semiconductor
Categories: Diode Arrays
Quality Control: Learn More

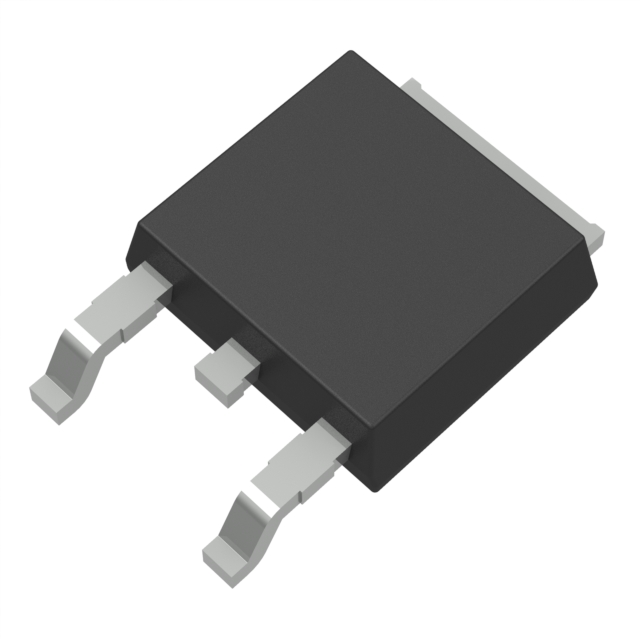

Rohm Semiconductor RBQ20BM65ATL is a Schottky diode array featuring a common cathode configuration. This surface mount component, housed in a TO-252-3 DPAK package, offers a reverse voltage rating of 65V and an average rectified current capability of 10A per diode. The forward voltage drop is specified at 630mV at 10A, with a reverse leakage current of 200µA at 65V. Operating junction temperature reaches up to 150°C. The device is supplied in Tape & Reel (TR) packaging. This diode array is suitable for applications in power supply rectification, battery charging systems, and automotive electronics where efficient switching and low forward voltage are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | TO-252 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 65 V |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 65 V |
