RB706WM-40FHTL
DIODE ARR SCHOTT 40V 30MA EMD3FManufacturer: Rohm Semiconductor
Categories: Diode Arrays
Quality Control: Learn More

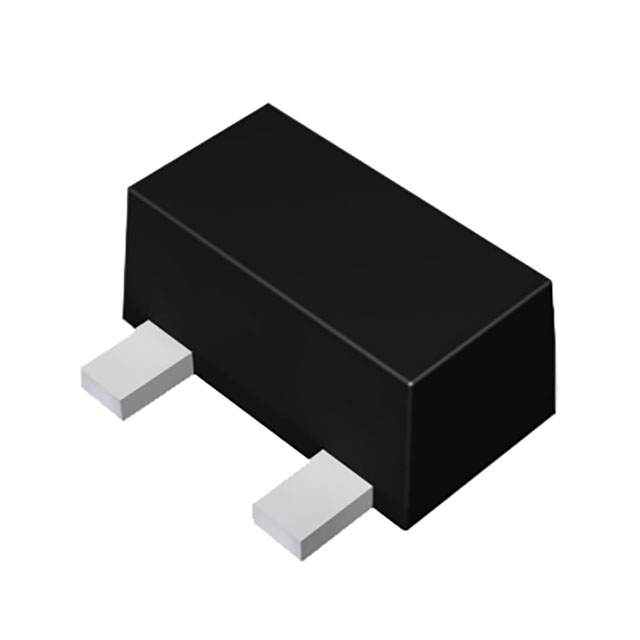

Rohm Semiconductor RB706WM-40FHTL is a 40V, 30mA Schottky diode array featuring a 1 pair series connection configuration. This device, housed in an EMD3F (SC-89, SOT-490) package, offers a low forward voltage of 370 mV at 1 mA and a reverse leakage of 500 nA at 30V. Designed for automotive applications, it meets AEC-Q101 qualification standards and operates at junction temperatures up to 125°C. The RB706WM-40FHTL is supplied on tape and reel (TR) and is suitable for small signal applications requiring rectification. Industries benefiting from this component include automotive and general electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 30mA |
| Supplier Device Package | EMD3F |
| Operating Temperature - Junction | 125°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 370 mV @ 1 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 30 V |
| Qualification | AEC-Q101 |
