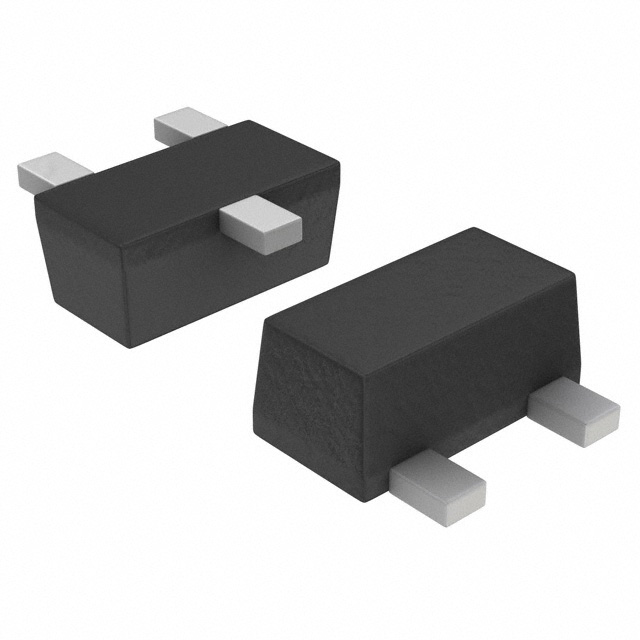

RB548WMFHTL
DIODE ARR SCHOTT 30V 100MA EMD3FManufacturer: Rohm Semiconductor
Categories: Diode Arrays
Quality Control: Learn More
Rohm Semiconductor presents the RB548WMFHTL, a Schottky diode array featuring a unique 1 pair series connection configuration. This component is designed for demanding applications requiring efficient rectification and low forward voltage. Each diode in the array offers a maximum forward voltage (Vf) of 450 mV at 10 mA and a maximum DC reverse voltage (Vr) of 30 V. The average rectified current (Io) per diode is rated at 100 mA, with a low reverse leakage of 500 nA at 10 V. Engineered for reliability in challenging environments, this device operates at junction temperatures up to 150°C (Max) and meets AEC-Q101 qualification standards. The compact EMD3F package, equivalent to SC-89 and SOT-490, is ideal for surface mount assembly and is supplied in tape and reel packaging for automated manufacturing processes. Its capabilities make it suitable for automotive, consumer electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Supplier Device Package | EMD3F |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 10 V |
| Qualification | AEC-Q101 |
