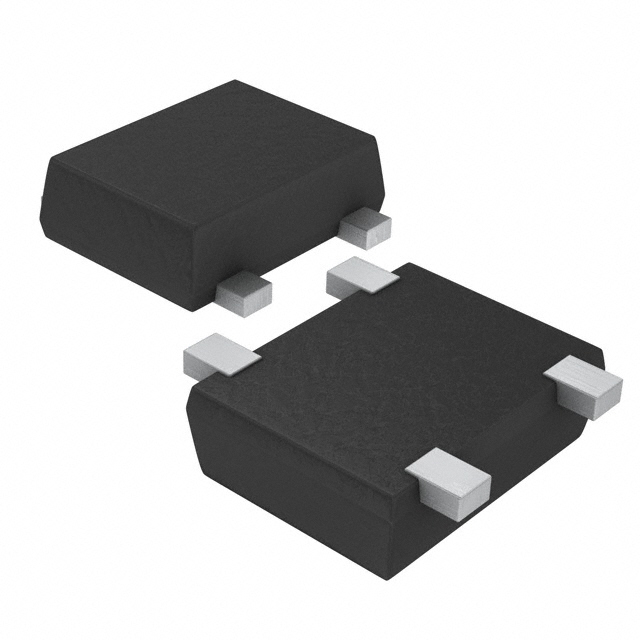

RB481Y-90T2R

DIODE ARR SCHOTT 90V 100MA EMD4

Manufacturer: Rohm Semiconductor

Categories: Diode Arrays

Quality Control: Learn More

Rohm Semiconductor RB481Y-90T2R is a Schottky diode array featuring two independent diodes within a compact EMD4 (SC-75-4, SOT-543) surface mount package. Each diode offers a maximum reverse voltage (Vr) of 90V and a forward voltage (Vf) of 610mV at a forward current (If) of 100mA. The average rectified current (Io) per diode is 100mA, with a reverse leakage current of 100 µA at 90V. This component is designed for applications requiring efficient rectification and low forward voltage drop. Operating junction temperatures can reach up to 125°C (Max). The RB481Y-90T2R is supplied in Tape & Reel (TR) packaging. This diode array is suitable for use in consumer electronics, industrial control systems, and telecommunications equipment.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / CaseSC-75-4, SOT-543
Mounting TypeSurface Mount
SpeedSmall Signal =< 200mA (Io), Any Speed
TechnologySchottky
Diode Configuration2 Independent
Current - Average Rectified (Io) (per Diode)100mA
Supplier Device PackageEMD4
Operating Temperature - Junction125°C (Max)
Voltage - DC Reverse (Vr) (Max)90 V
Voltage - Forward (Vf) (Max) @ If610 mV @ 100 mA
Current - Reverse Leakage @ Vr100 µA @ 90 V
