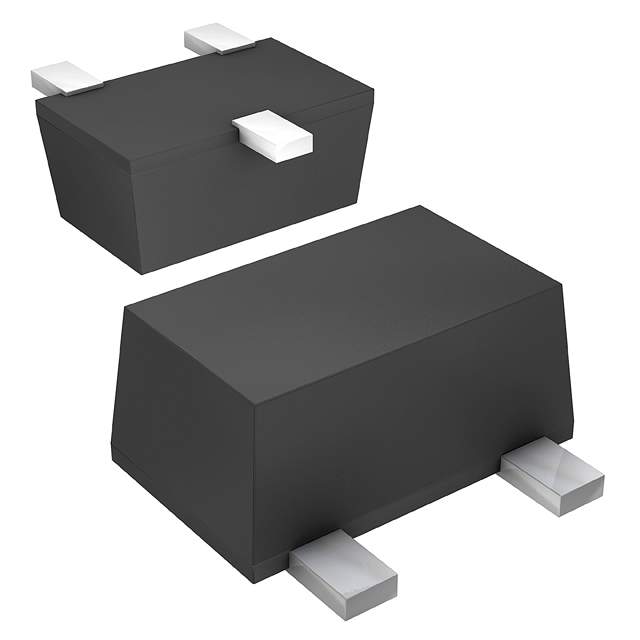

DAP222MT2L
DIODE ARRAY GP 80V 100MA VMD3Manufacturer: Rohm Semiconductor
Categories: Diode Arrays
Quality Control: Learn More
Rohm Semiconductor DAP222MT2L is a dual common anode diode array designed for general-purpose applications. This component features a maximum reverse voltage of 80V and an average rectified current of 100mA per diode. With a low forward voltage of 1.2V at 100mA and a reverse leakage of 100 nA at 70V, it offers efficient performance. The SOT-723 package, also known as VMD3, is suitable for surface mounting. Operating up to a junction temperature of 150°C, this diode array is utilized in industrial and automotive sectors. Its small signal speed is optimized for currents up to 200mA with a reverse recovery time of 4 ns.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Supplier Device Package | VMD3 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 70 V |
