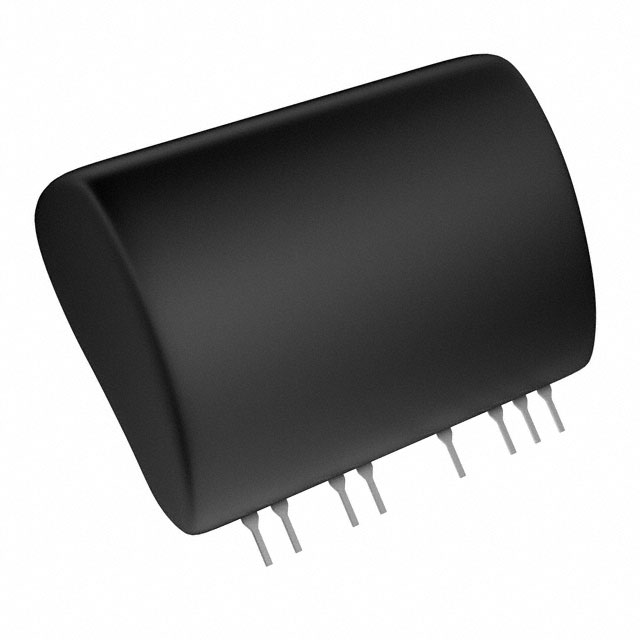

BP5324A
IC REG BOOST 12V 250MA 12SIPManufacturer: Rohm Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Rohm Semiconductor BP5324A is a boost switching regulator IC designed for fixed 12V output at 250mA switch current. This positive output regulator is capable of isolation and operates with an input voltage range of 4.5V to 5.5V. Featuring a 12-SIP, 8-lead package, the BP5324A is suitable for through-hole mounting. Its robust design supports applications across various industrial sectors requiring stable voltage step-up conversion. The device is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 12-SIP, 8 Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 250mA (Switch) |
| Operating Temperature | -25°C ~ 80°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | - |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 12-SIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 12V |
