BM2P016-Z
IC REG FLYBACK 950MA 7DIPManufacturer: Rohm Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More
Rohm Semiconductor's BM2P016-Z is a flyback switching regulator IC designed for efficient power conversion. This single-output device provides a positive regulated output with a maximum current capability of 950mA. Operating at a fixed switching frequency of 65kHz, the BM2P016-Z is suitable for a wide input voltage range of 8.9V to 26V. Its topology is flyback, and it does not incorporate a synchronous rectifier. The device is housed in a 7-lead, 8-DIP (0.300", 7.62mm) through-hole package, facilitating straightforward board mounting. The operating temperature range is specified from -40°C to 105°C (TA). This component finds application in various power supply solutions across industrial and consumer electronics markets.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

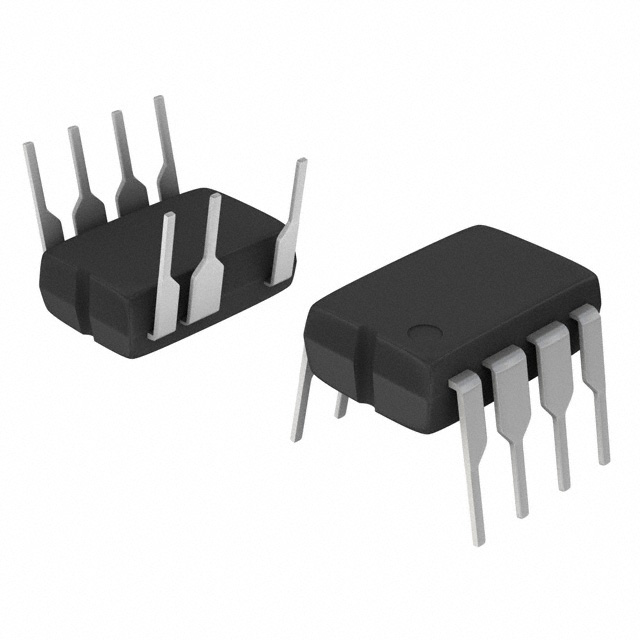

| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Current - Output | 950mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 65kHz |
| Voltage - Input (Max) | 26V |
| Topology | Flyback |
| Supplier Device Package | 7-DIP |
| Synchronous Rectifier | No |
| Voltage - Input (Min) | 8.9V |
