BD9P608MFF-CE2
IC REG BUCK ADJ 6A VFN20FV4535Manufacturer: Rohm Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More

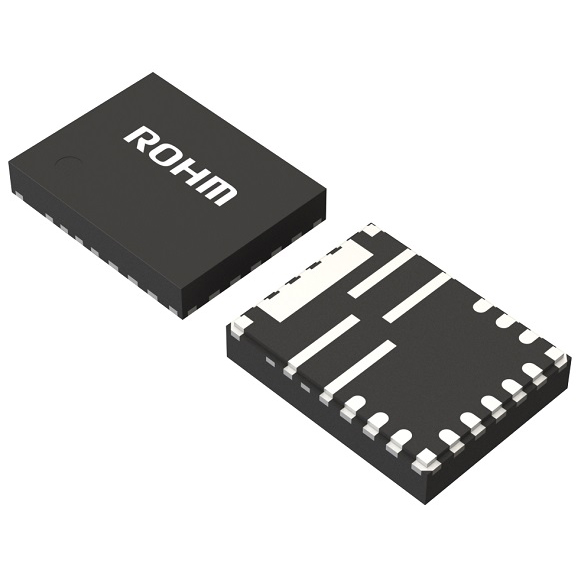

The Rohm Semiconductor BD9P608MFF-CE2 is a Nano Pulse Control™ series buck switching regulator. This adjustable positive output device operates as a step-down converter, offering a single output capable of delivering up to 6A. With an input voltage range of 3.5V to 40V and an output voltage adjustable from 0.8V up to 8.5V, it provides flexibility for diverse power management needs. The BD9P608MFF-CE2 features switching frequencies of 440kHz and 2MHz, and includes a synchronous rectifier for enhanced efficiency. Designed for surface mount applications, it is housed in a 20-PowerVFQFN wettable flank package. This component is AEC-Q100 qualified, making it suitable for automotive applications.
Additional Information
Series: Nano Pulse Control™RoHS Status: RoHS CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerVFQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 440kHz, 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | VFN20FV4535 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 8.5V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
