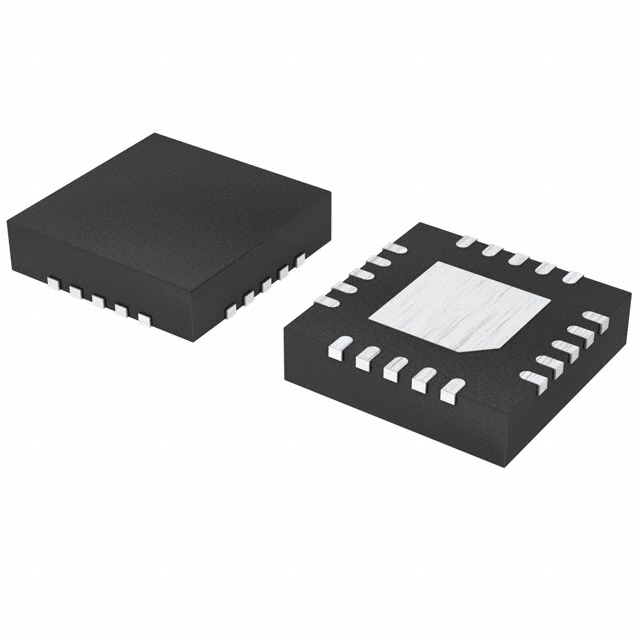

BD9141MUV-E2
IC REG BUCK ADJ 2A 20VQFNManufacturer: Rohm Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Rohm Semiconductor BD9141MUV-E2 is a high-performance, adjustable output voltage buck switching regulator designed for efficient power conversion. This device offers a 2A output current capability with a wide input voltage range of 4.5V to 13.2V. Featuring a fixed switching frequency of 500kHz, it enables the use of compact external components. The BD9141MUV-E2 incorporates a synchronous rectifier for improved efficiency, minimizing power loss. Its adjustable output voltage ranges from 2.5V up to 6V, providing flexibility for various design requirements. Supplied in a 20-VFQFN Exposed Pad package, this component is suitable for surface mount applications. It finds utility in automotive, industrial, and telecommunications power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 13.2V |
| Topology | Buck |
| Supplier Device Package | VQFN020V4040 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 6V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
