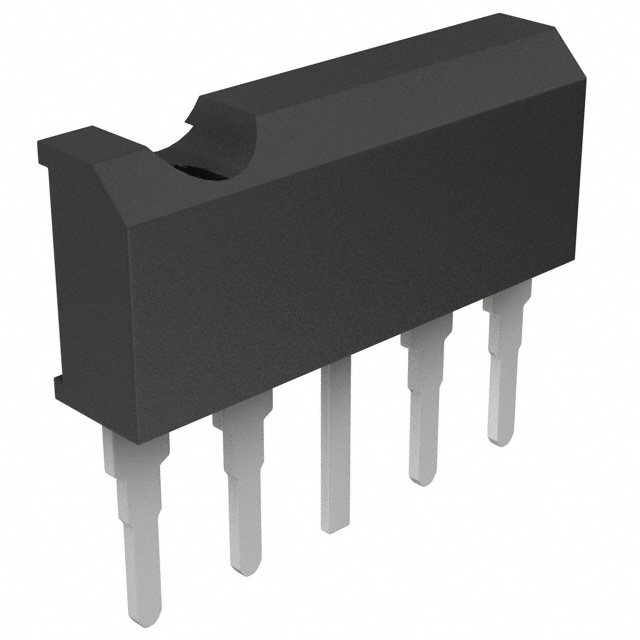

BA6161N
IC REG BOOST ADJUSTABLE 3MA 5SIPManufacturer: Rohm Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Rohm Semiconductor BA6161N is a versatile boost switching regulator IC designed for step-up voltage conversion. This positive adjustable output device operates with an input voltage range of 3V to 16V, capable of delivering an output voltage up to 35V. Featuring a fixed output of 30V with a 3mA current capability, the BA6161N utilizes a 100kHz switching frequency. Its 5-SIP package, suitable for through-hole mounting, houses a non-synchronous rectifier and a boost topology. This component finds application in power management solutions across various industries including consumer electronics and industrial control systems. The operating temperature range is -20°C to 75°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 5-SIP |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 3mA |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz |
| Voltage - Input (Max) | 16V |
| Topology | Boost |
| Supplier Device Package | 5-SIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 30V |
