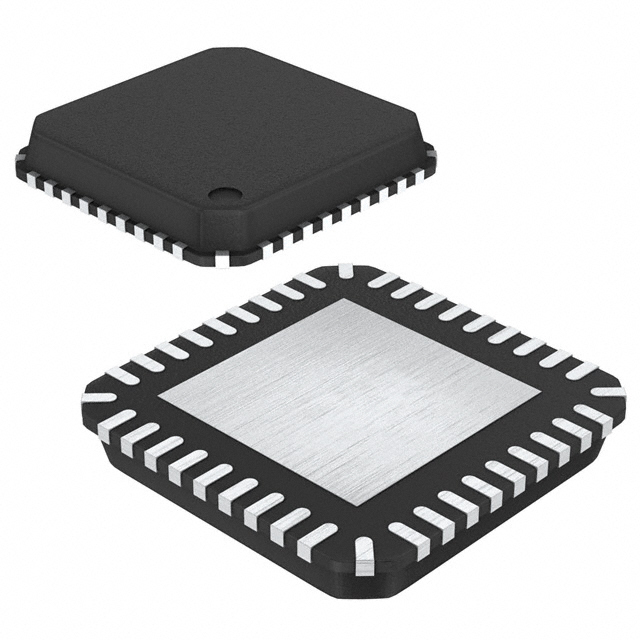

BD9011EKN-E2
IC REG CTRLR BUCK 36HQFNManufacturer: Rohm Semiconductor
Categories: DC DC Switching Controllers
Quality Control: Learn More
Rohm Semiconductor's BD9011EKN-E2 is a highly efficient, synchronous buck (step-down) DC-DC controller designed for demanding power management applications. This device features a 300kHz switching frequency and supports a wide input voltage range of 3.9V to 30V, making it suitable for automotive, industrial, and consumer electronics power systems. The BD9011EKN-E2 offers advanced control features including Enable, Frequency Control, and Soft Start for precise power sequencing and reduced inrush current. Its architecture supports multiple outputs and a single output phase with a positive output configuration. The controller is packaged in a 36-HQFNV (6.2x6.2) surface-mount package, supplied on tape and reel. The integrated synchronous rectifier enhances efficiency by minimizing conduction losses.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.9V ~ 30V |
| Supplier Device Package | 36-HQFNV (6.2x6.2) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 2 |
