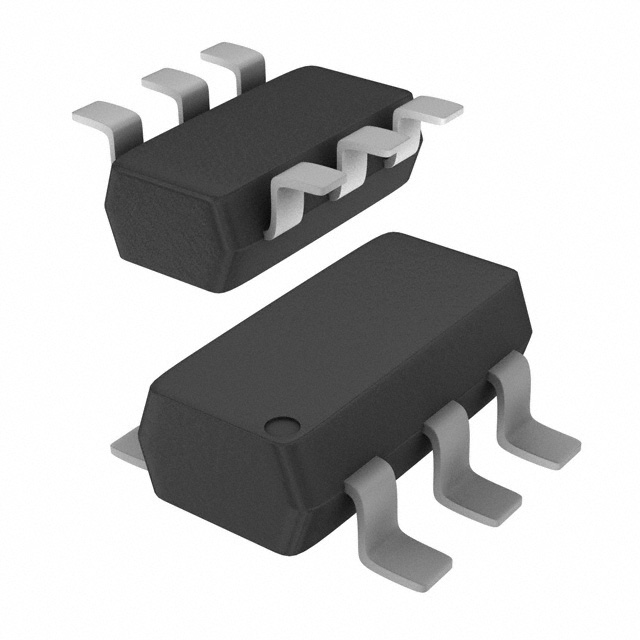

IMD2AT108
TRANS NPN/PNP PREBIAS 0.3W SMT6Manufacturer: Rohm Semiconductor
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 300mW Surface Mount SMT6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| Supplier Device Package | SMT6 |
| Grade | - |
| Qualification | - |
