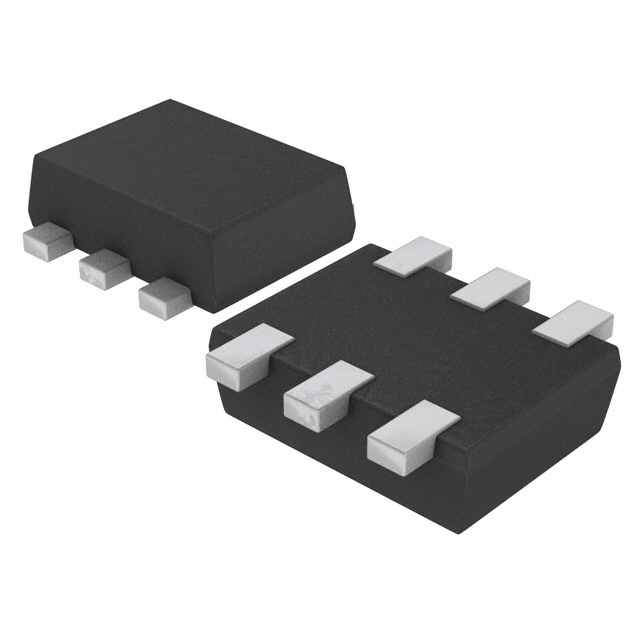

EMD12FHAT2R

PNP+NPN DIGITAL TRANSISTOR (CORR

Manufacturer: Rohm Semiconductor

Categories: Bipolar Transistor Arrays, Pre-Biased

Quality Control: Learn More

The Rohm Semiconductor EMD12FHAT2R is a dual pre-biased bipolar transistor array, featuring one NPN and one PNP transistor within a single EMT6 package. This device is qualified to AEC-Q101 standards, making it suitable for automotive applications. Key specifications include a collector current (Ic) of 100mA, a transition frequency (fT) of 250MHz, and a maximum power dissipation of 150mW. The internal resistors are rated at 47kOhms for both base (R1) and emitter-base (R2). Saturation voltage (Vce(sat)) is 300mV at 500µA base current and 10mA collector current. The component is supplied in a Tape & Reel (TR) package for surface mounting, compatible with SOT-563 and SOT-666 footprints. This component is commonly utilized in automotive control systems and power management circuits.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / CaseSOT-563, SOT-666
Mounting TypeSurface Mount
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Power - Max150mW
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)-
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Frequency - Transition250MHz
Resistor - Base (R1)47kOhms
Resistor - Emitter Base (R2)47kOhms
Supplier Device PackageEMT6
GradeAutomotive
QualificationAEC-Q101
