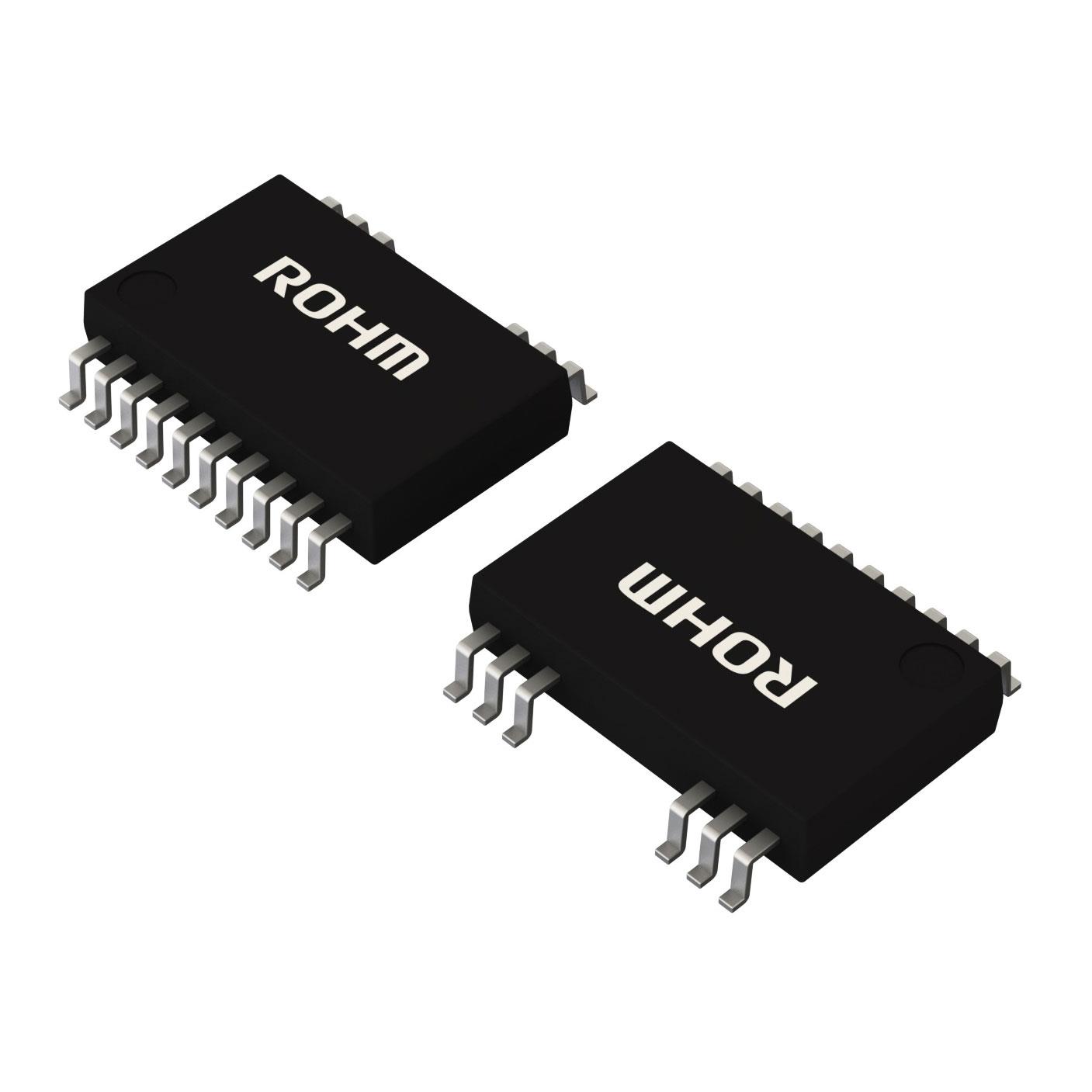

BM2PH1A13FS-ZE2
BUILT-IN SWITCHING MOSFET PWM-TYManufacturer: Rohm Semiconductor
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 100kHz 20-SSOPA_16A
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 20-SOP (0.213"", 5.40mm Width), 16 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.3V ~ 25V |
| Supplier Device Package | 20-SSOPA_16A |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 9.5 V |
| Control Features | Soft Start |
| Grade | - |
| Qualification | - |
