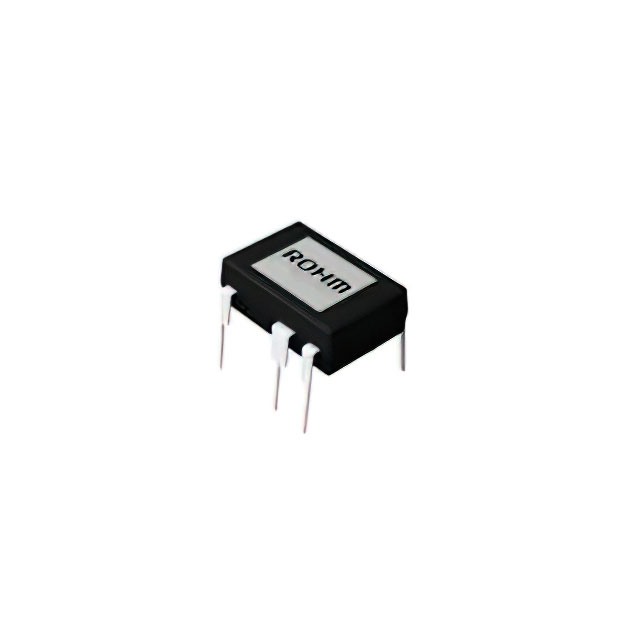

BM2P10B1JL-Z
BUILT-IN SWITCHING MOSFET PWM-TYManufacturer: Rohm Semiconductor
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 100kHz 7-DIPK
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 730V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.9V ~ 26V |
| Supplier Device Package | 7-DIPK |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 13.5 V |
| Control Features | Soft Start |
| Grade | - |
| Power (Watts) | 35 W |
| Qualification | - |
Request a Quote
