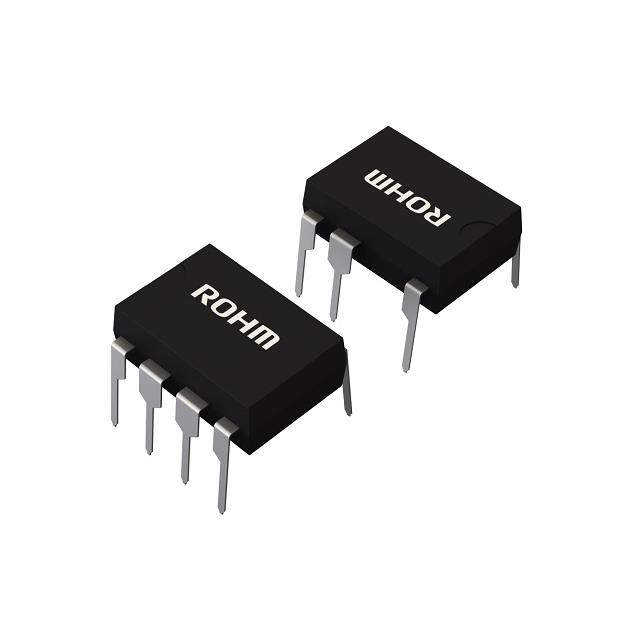

BM2P103HK-LBZ
INTEGRATED 800V SWITCHING MOSFETManufacturer: Rohm Semiconductor
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 100kHz 7-DIP-AK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Duty Cycle | 75% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10.9V ~ 30V |
| Supplier Device Package | 7-DIP-AK |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Voltage - Start Up | 10.7 V |
| Control Features | Frequency Control, Soft Start |
| Grade | - |
| Qualification | - |
