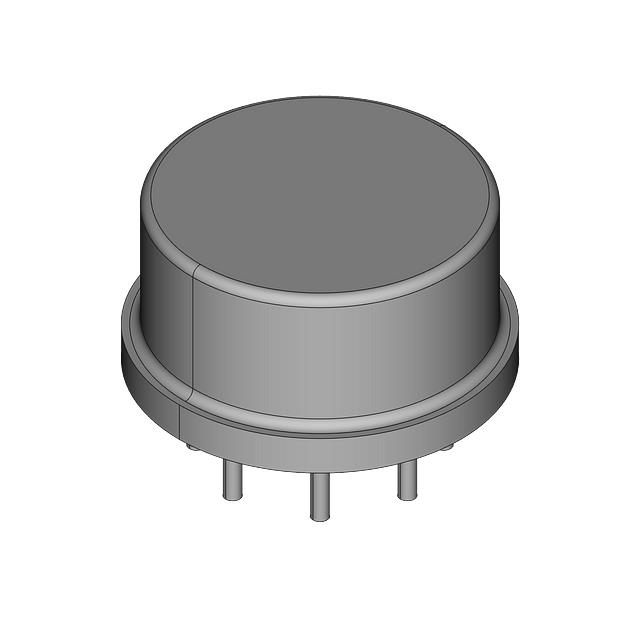

DG301AAA
CMOS Analog SwitchManufacturer: Rochester Electronics, LLC
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 50Ohm TO-100-10
Additional Information
Series: DG300A_MILRoHS Status: RoHS non-compliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-100-10 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 50Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | TO-100-10 |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Charge Injection | 12pC |
| Crosstalk | -74dB @ 500kHz |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Grade | - |
| Number of Circuits | 1 |
| Qualification | - |
