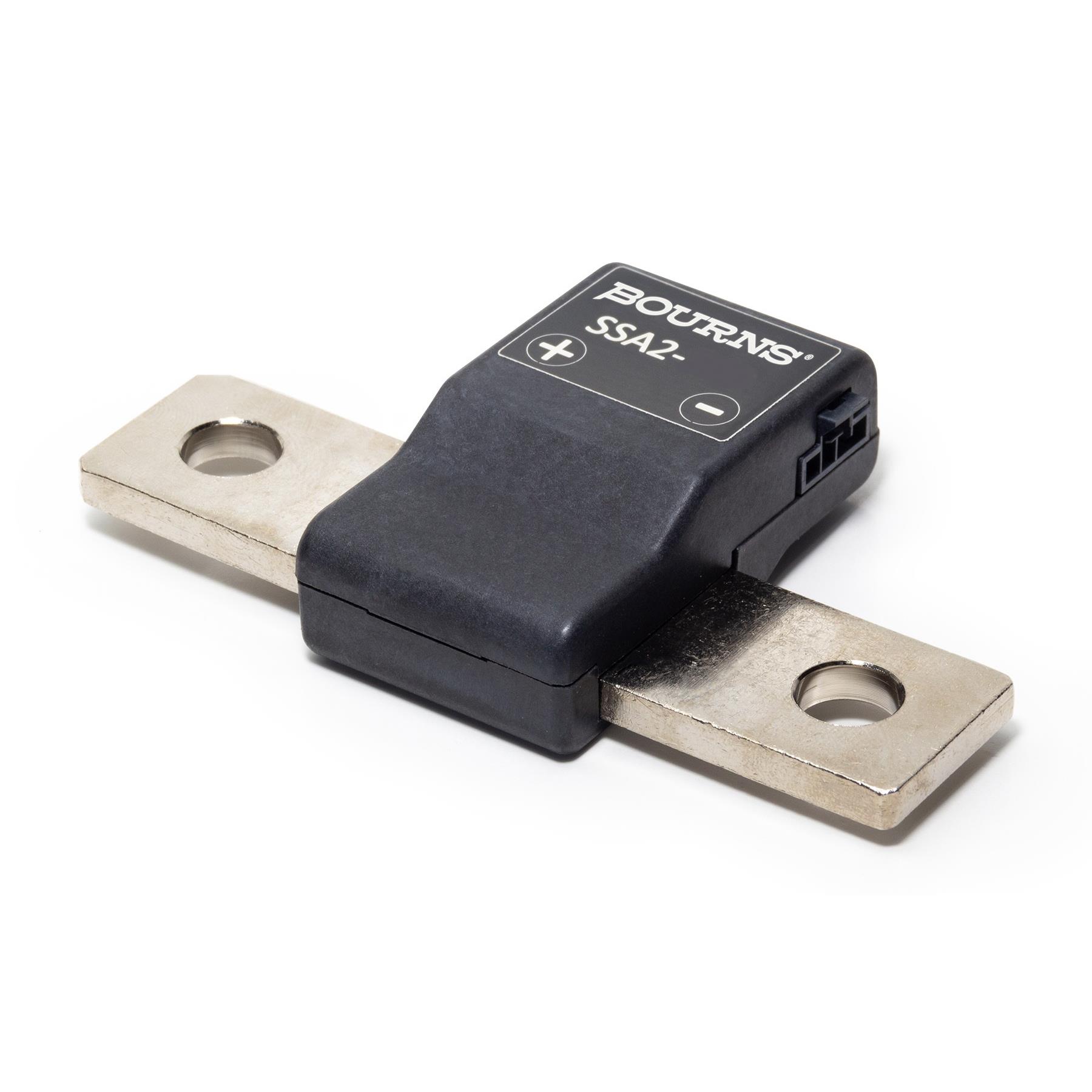

SSA2-100
SMART CURRENT SENSE SHUNT 100 AMManufacturer: Riedon products by Bourns
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 100A 1 Channel Shunt Bidirectional Module
Additional Information
Series: SSA2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Response Time | 1.6µs |
| Sensor Type | Shunt |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 40mA (Typ) |
| Current - Sensing | 100A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
