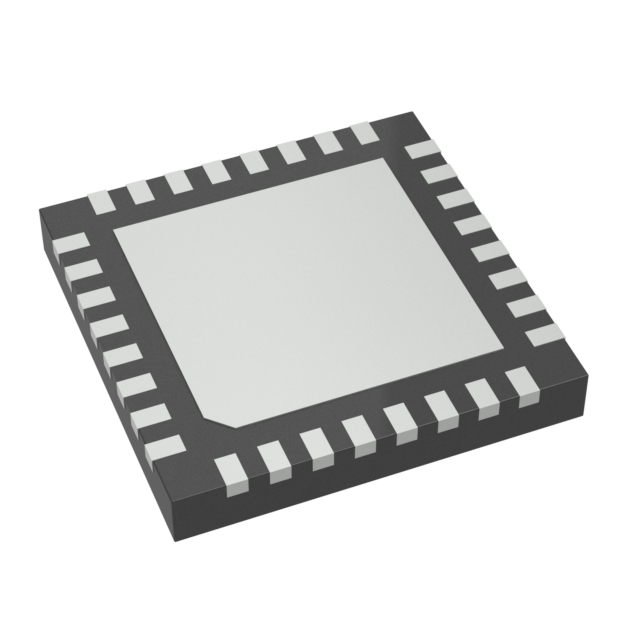

RT8206AGQW
IC REG CTRLR NOTEBK 2OUT 32WQFNManufacturer: Richtek USA Inc.
Categories: Special Purpose Regulators
Quality Control: Learn More
Richtek USA Inc. RT8206AGQW is a dual-output PWM controller designed for notebook power systems. This surface-mount device, packaged in a 32-WQFN (5x5) with an exposed pad, supports input voltages from 6V to 25V. It offers flexible output voltage configurations, with specific outputs at 3.3V and 5.5V, and an adjustable output ranging from 2V to 5.5V. The RT8206AGQW operates within a temperature range of -40°C to 85°C and is supplied on tape and reel. Its architecture facilitates efficient power management in demanding applications, particularly within the notebook computing sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Voltage - Output | 3.3V, 5.5V, 2V ~ 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Voltage - Input | 6V ~ 25V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Controller, Notebook Power System |
| Supplier Device Package | 32-WQFN (5x5) |
