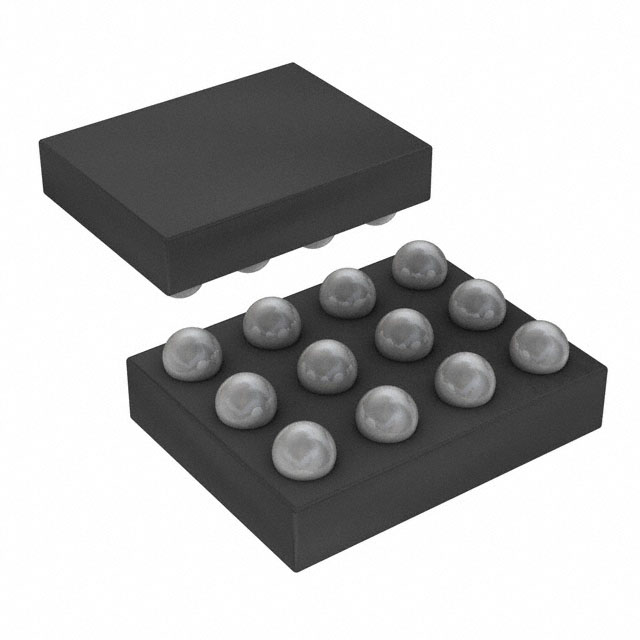

RT9746HWSC
IC REG OVP WITH PTVS WL-CSP-12Manufacturer: Richtek USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 12-WLCSP (1.92x1.27)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 35mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 3V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 12-WLCSP (1.92x1.27) |
| Fault Protection | Over Voltage |
