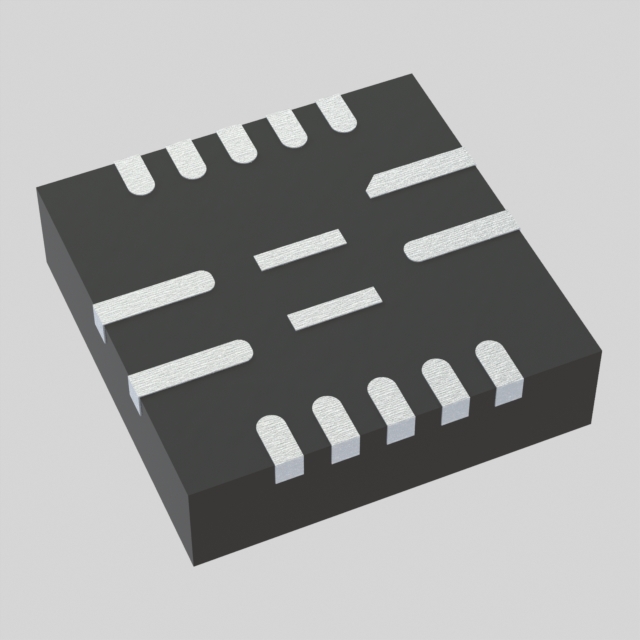

RT7290AGQUF
IC BUCK ADJ 23V 6A UQFN-16(FC)Manufacturer: Richtek USA Inc.
Categories: Linear + Switching
Quality Control: Learn More
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 500kHz 16-QFN Type U (FC) (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerUFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 5V ~ 23V |
| Frequency - Switching | 500kHz |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Supplier Device Package | 16-QFN Type U (FC) (3x3) |
| Voltage/Current - Output 1 | Fixed, Fixed, 3.3V, 6A |
| Voltage/Current - Output 2 | Fixed, Fixed, 3.3V, 100mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 2 |
Request a Quote
Clients Also Buy

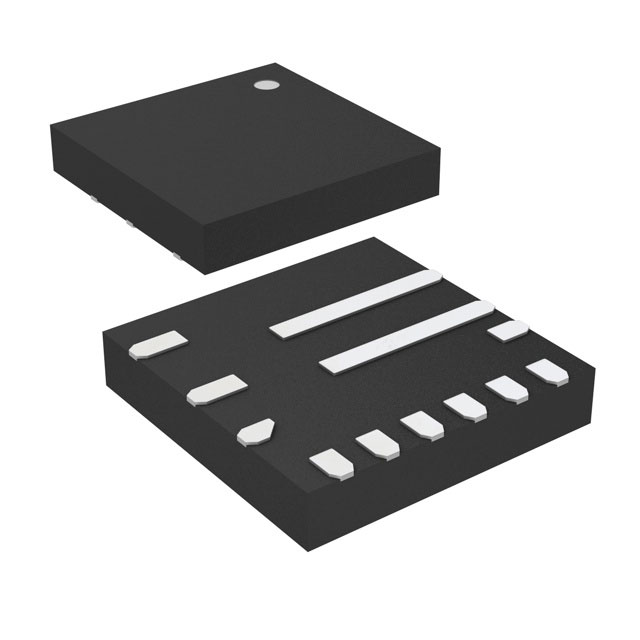

RT6256BGQUF
