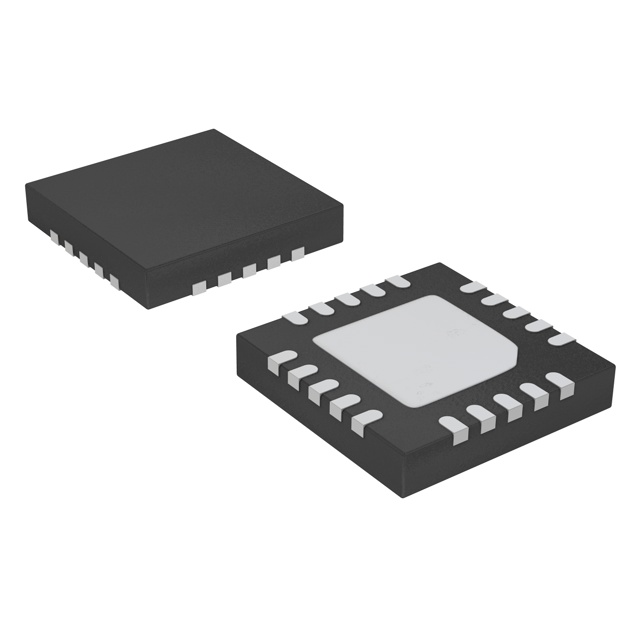

RTQ2522BGQW(2)
IC REG LINEAR POS ADJ 2A 20WQFNManufacturer: Richtek USA Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 20-WQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-WQFN (5x5) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 60dB ~ 30dB (1kHz ~ 300kHz) |
| Voltage Dropout (Max) | 0.15V @ 2A |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
| Current - Supply (Max) | 2 mA |
