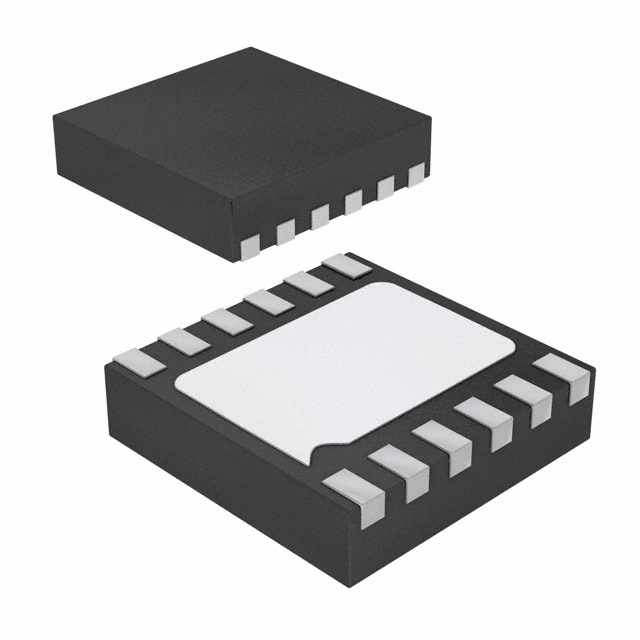

RT8071CGQW
IC REG BUCK ADJ 3A 10WDFNManufacturer: Richtek USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Richtek USA Inc. RT8071CGQW is a highly efficient buck switching regulator IC designed for step-down voltage conversion. This device offers an adjustable output voltage, configurable from 0.6V up to 5.5V, with a maximum output current of 3A. Featuring a 1MHz switching frequency and a synchronous rectifier, the RT8071CGQW provides excellent regulation and power efficiency. Its 10-WFDFN exposed pad package ensures effective thermal management for demanding applications. This component is suitable for use in consumer electronics, industrial automation, and battery-powered devices. The input voltage range is 2.7V to 5.5V, and it operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-WDFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
