RT8004GQV
IC REG BUCK ADJ 3A 16VQFNManufacturer: Richtek USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Richtek USA Inc. RT8004GQV is a high-performance, asynchronous buck switching regulator designed for efficient power conversion. This adjustable output device offers a robust 3A output current capability with an output voltage range from 0.8V to 5V. Its wide switching frequency range of 300kHz to 4MHz allows for flexible design choices, accommodating component size and efficiency trade-offs.

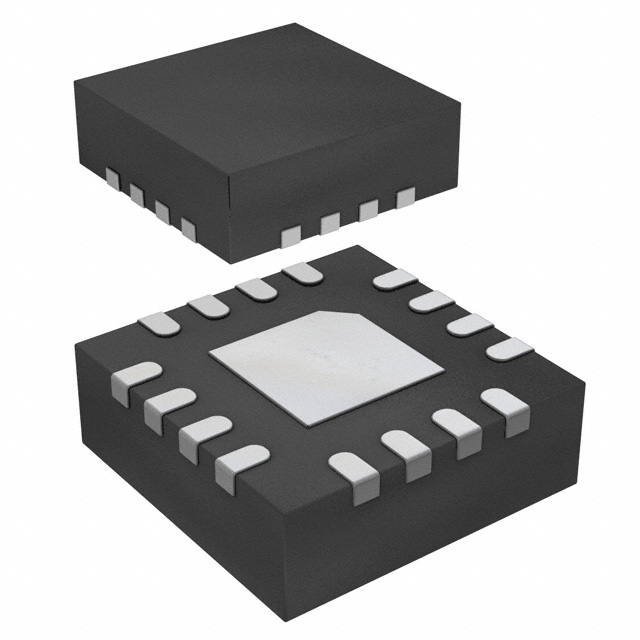

Featuring a 16-VQFN exposed pad package, the RT8004GQV is optimized for surface mount applications. The device operates with an input voltage range of 2.65V to 5.5V, making it suitable for a variety of portable and embedded systems. Its integrated synchronous rectifier contributes to improved efficiency. Applications for this component include battery-powered devices, mobile computing, and point-of-load regulation in power management systems. The RT8004GQV is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 16-VQFN (4x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 2.65V |
| Voltage - Output (Min/Fixed) | 0.8V |
