RT4813GQUF
IC REG BOOST ADJ 3.1A 9UQFNManufacturer: Richtek USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More

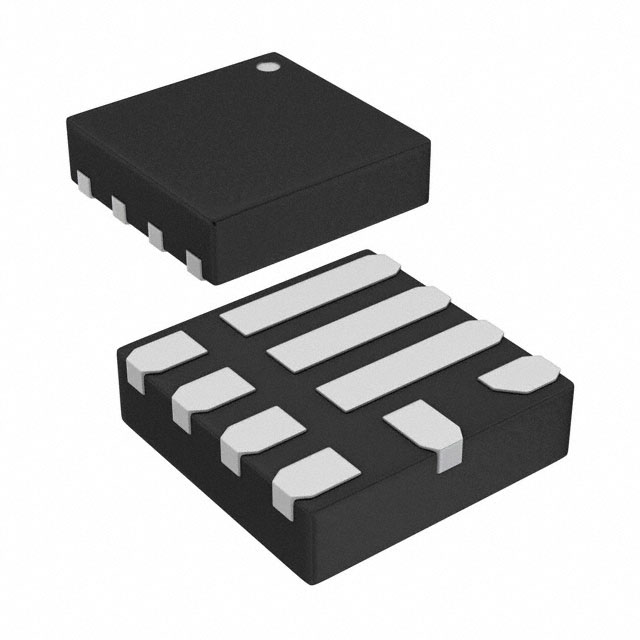

Richtek USA Inc. RT4813GQUF is a step-up (Boost) switching regulator IC. This positive, adjustable output device provides a maximum switch current of 3.1A. Operating at a switching frequency of 500kHz, it supports input voltages from 1.8V to 5.5V, with the output voltage also adjustable from 1.8V up to 5.5V. The RT4813GQUF features a synchronous rectifier for improved efficiency and is housed in a compact 9-UFQFN (2x2) surface mount package, supplied on tape and reel. Its capabilities make it suitable for applications in consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 3.1A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 9-UQFN (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 1.8V |
| Voltage - Output (Min/Fixed) | 1.8V |
