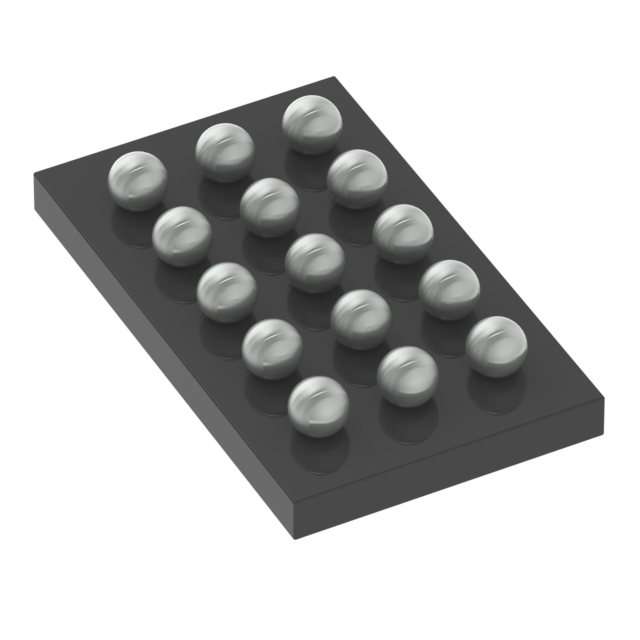

RT6160AWSC
IC BUCK-BOOST 3A WL-CSP-15Manufacturer: Richtek USA Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck-Boost Regulator Positive Output Step-Up/Step-Down I2C DC-DC Controller IC 15-WL-CSP (BSC) (1.4x2.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-UFBGA, WLCSP |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.2MHz, 500kHz ~ 3MHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Supplier Device Package | 15-WL-CSP (BSC) (1.4x2.3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Power Good, Ramp, Slew Control, Soft Start |
| Serial Interfaces | I2C |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
