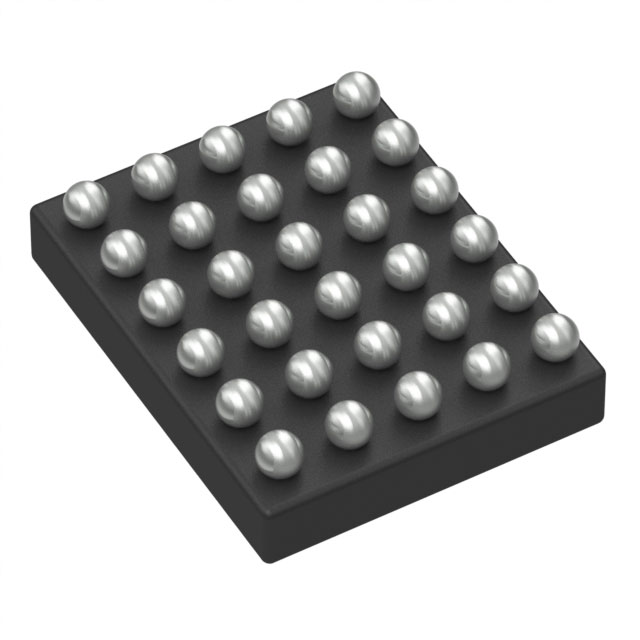

RT9470DWSC
IC BATT CHG LI-ION 1CELL 30WLCSPManufacturer: Richtek USA Inc.
Categories: Battery Chargers
Quality Control: Learn More
Charger IC Lithium Ion/Polymer 30-WLCSP (2.1x2.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-UFBGA, WLCSP |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 30-WLCSP (2.1x2.5) |
| Charge Current - Max | 3A |
| Programmable Features | Current, Timer |
| Fault Protection | Over Current, Over Temperature, Over-Under Voltage |
| Voltage - Supply (Max) | 13.5V |
| Battery Pack Voltage | 4.7V |
| Current - Charging | Constant - Programmable |
Request a Quote
