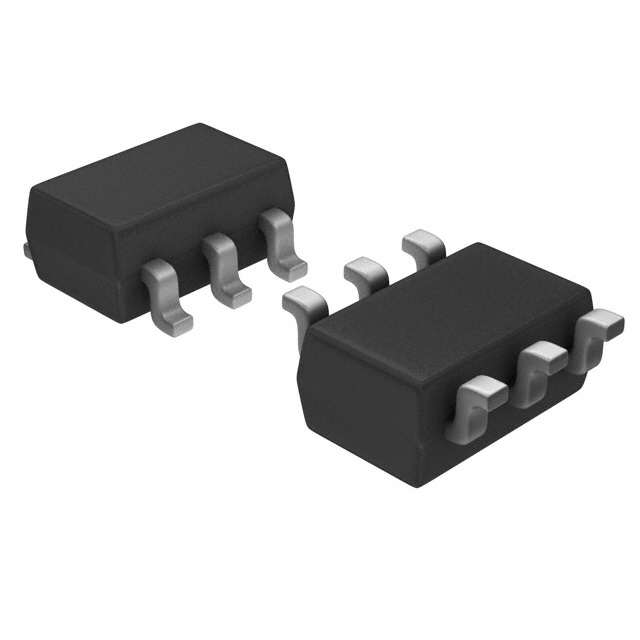

RT7736FGE
IC OFFLINE SW FLYBACK SOT23-6Manufacturer: Richtek USA Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 65kHz SOT-23-6
Additional Information
Series: SmartJitter™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 25V |
| Supplier Device Package | SOT-23-6 |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Voltage - Start Up | 14.5 V |
| Control Features | - |
