NNCD16DA-T1-AT
NNCD16DA-T1-AT - ELECTROSTATIC DManufacturer: Renesas
Categories: TVS Diodes
Quality Control: Learn More

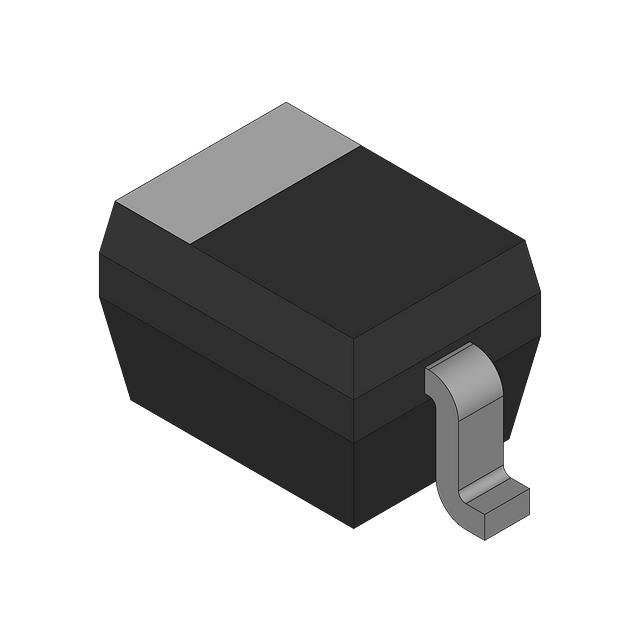

Renesas NNCD16DA-T1-AT is a surface mount TVS diode designed for robust electrostatic discharge (ESD) protection. This component, housed in a 2-Super Mini Mold package (SC-76, SOD-323), offers a breakdown voltage of 15.31V and a reverse standoff voltage of 12V. It features a peak pulse power rating of 85W and a typical capacitance of 43pF at 1MHz, making it suitable for general-purpose applications. The device operates at junction temperatures up to 150°C. Its unidirectional design provides single-channel protection. This component is commonly utilized in consumer electronics and industrial automation systems requiring reliable ESD mitigation.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 43pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Supplier Device Package | 2-Super Mini Mold |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 15.31V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | 85W |
| Power Line Protection | No |
