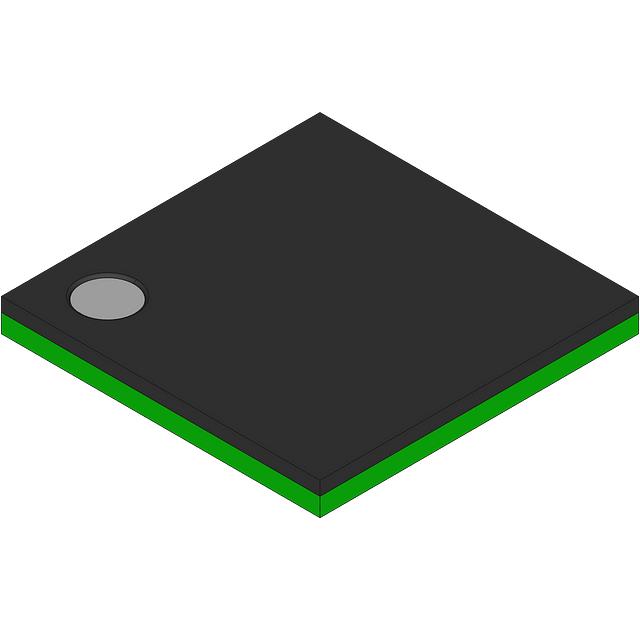

DF2215RBR24V
IC MCU 32BIT 256KB FLSH 112LFBGAManufacturer: Renesas
Categories: Microcontrollers
Quality Control: Learn More
The Renesas DF2215RBR24V is a 32-bit microcontroller featuring the H8S/2000 core, operating at 24MHz. This component offers 256KB of FLASH program memory (256K x 8) and 20KB of RAM. On-chip peripherals include DMA, POR, PWM, and WDT. Connectivity options comprise SCI, SmartCard, and USB interfaces. It is equipped with analog capabilities, including 6x10-bit SAR A/D converters and 2x8-bit D/A converters. The device supports 68 I/O lines and operates within a voltage range of 2.7V to 3.6V. The DF2215RBR24V is supplied in a 112-LFBGA (10x10) surface mount package and is specified for an operating temperature range of -20°C to 75°C (TA). This device is utilized in various applications, including industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 112-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 20K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 6x10b SAR; D/A 2x8b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SCI, SmartCard, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 112-LFBGA (10x10) |
| Number of I/O | 68 |
| Programmable | Not Verified |
