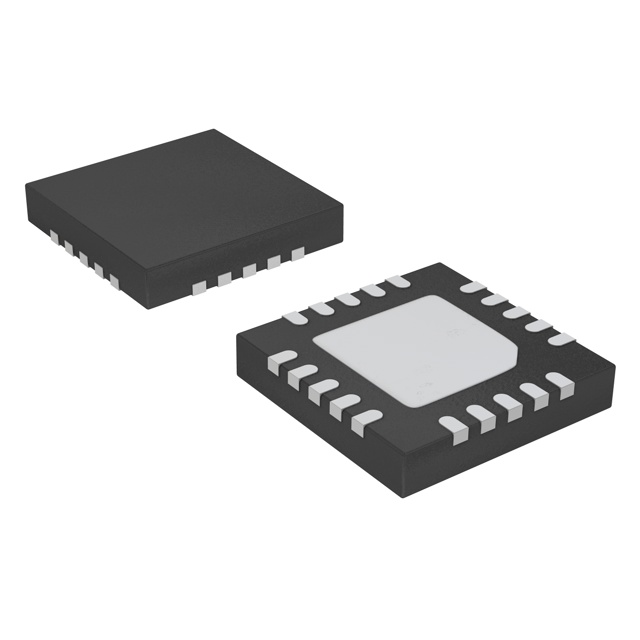

ISL59601IRZ-T7A
IC VIDEO EQUALIZER 20QFNManufacturer: Renesas Electronics Corporation
Categories: Video Processing
Quality Control: Learn More
Renesas Electronics Corporation's MegaQ™ series ISL59601IRZ-T7A is a high-performance video equalizer IC designed for professional video applications. This component features serial control for NTSC and PAL standards, offering precise signal conditioning. The ISL59601IRZ-T7A is housed in a compact 20-QFN (4x4) package with an exposed pad, facilitating efficient surface mounting. Operating within a voltage range of 4.5V to 5.5V, this device is ideal for systems requiring robust video signal integrity. Its functionality as an equalizer makes it suitable for applications demanding accurate video restoration and enhancement. The component is supplied on a tape and reel for automated assembly processes.
Additional Information
Series: MegaQ™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Equalizer |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | Professional Video |
| Standards | NTSC, PAL |
| Supplier Device Package | 20-QFN (4x4) |
| Control Interface | Serial |
