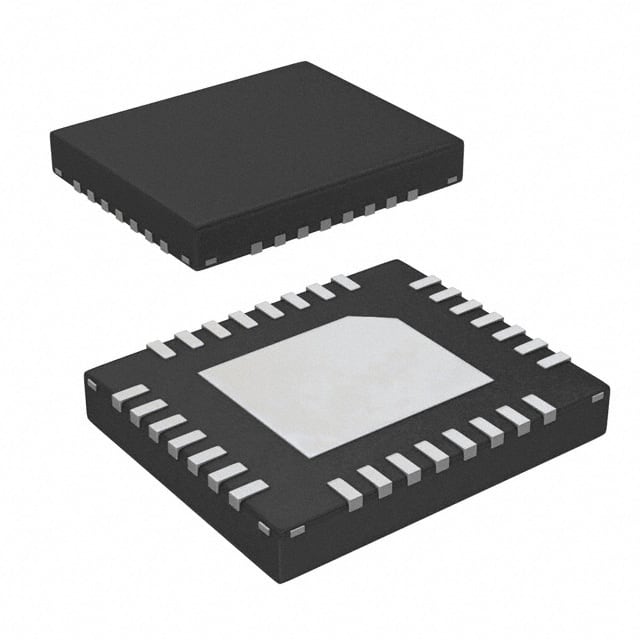

ISL59446IRZ-T7
IC AMP MPLEX AMP 32QFNManufacturer: Renesas Electronics Corporation
Categories: Video Amps and Modules
Quality Control: Learn More
The Renesas Electronics Corporation ISL59446IRZ-T7 is a 3-channel, 4:1 multiplexer-amplifier designed for high-performance video applications. This device boasts a -3dB bandwidth of 620 MHz and a slew rate of 1600V/µs, ensuring exceptional signal integrity for demanding video signal routing and amplification. Each channel provides a robust output current of 135 mA, suitable for driving various display interfaces. The ISL59446IRZ-T7 operates with a typical supply current of 44 mA. Supplied in a 32-QFN (5x6) exposed pad package, it is optimized for surface mount assembly. This component is frequently utilized in broadcast video, professional video routing, and high-definition display systems requiring precise signal management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Applications | 4:1 Multiplexer-Amplifier |
| Slew Rate | 1600V/µs |
| Voltage - Supply, Single/Dual (±) | - |
| Supplier Device Package | 32-QFN (5x6) |
| Number of Circuits | 3 |
| Current - Supply | 44 mA |
| Current - Output / Channel | 135 mA |
| -3db Bandwidth | 620 MHz |
