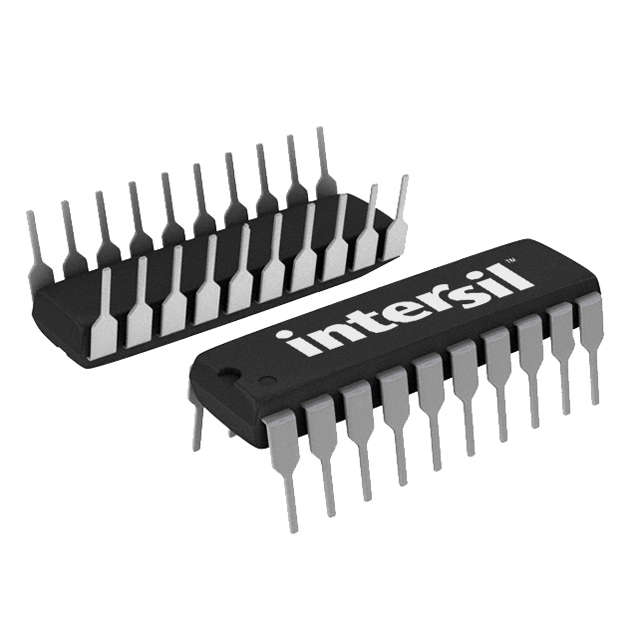

HA5024IPZ
IC AMP CURRENT FEEDBACK 20DIPManufacturer: Renesas Electronics Corporation
Categories: Video Amps and Modules
Quality Control: Learn More
Renesas Electronics Corporation HA5024IPZ is a quad, high-speed current feedback amplifier. This component offers a -3dB bandwidth of 125 MHz and a slew rate of 350V/µs, making it suitable for demanding video signal processing applications. Designed for through-hole mounting in a 20-PDIP package, it operates with a wide supply voltage range of ±4.5V to ±18V. Each channel delivers an output current of 20 mA while consuming a typical supply current of 7.5 mA. The HA5024IPZ is a robust solution for systems requiring high-frequency amplification, commonly found in professional video equipment and broadcast infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Applications | Current Feedback |
| Slew Rate | 350V/µs |
| Voltage - Supply, Single/Dual (±) | ±4.5V ~ 18V |
| Supplier Device Package | 20-PDIP |
| Number of Circuits | 4 |
| Current - Supply | 7.5 mA |
| Current - Output / Channel | 20 mA |
| -3db Bandwidth | 125 MHz |
