EL4543IUZS2714

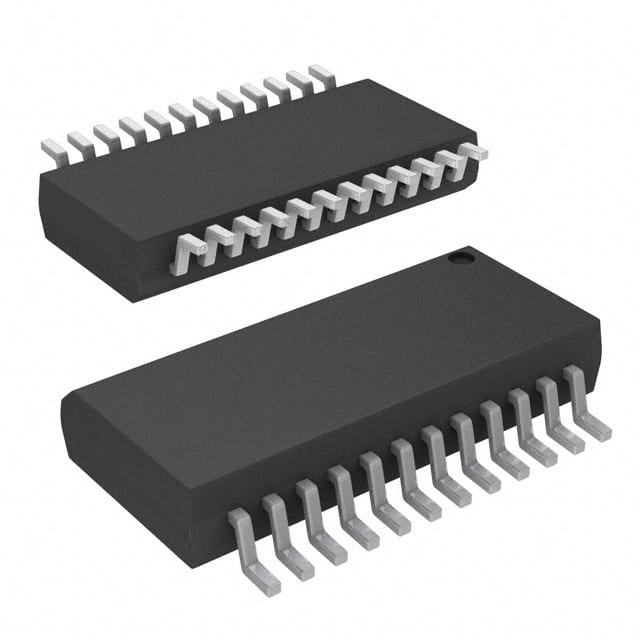

IC AMP DRIVER 24QSOPManufacturer: Renesas Electronics Corporation
Categories: Video Amps and Modules
Quality Control: Learn More
Renesas Electronics Corporation's EL4543IUZS2714 is a three-circuit video amplifier driver housed in a 24-QSOP package. This component features a 350 MHz -3dB bandwidth and a high slew rate of 1000V/µs, making it suitable for demanding video processing applications. The output type is differential, and each channel can deliver up to 60 mA of output current. Operating from a single supply of 5V to 12V or a dual supply range of ±2.5V to ±6V, the device draws a typical supply current of 14.5 mA. Surface mountable, this component is commonly utilized in broadcast video, high-definition displays, and professional video equipment. The supplier device package is the 24-QSOP.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Applications | Driver |
| Slew Rate | 1000V/µs |
| Voltage - Supply, Single/Dual (±) | 5V ~ 12V, ±2.5V ~ 6V |
| Supplier Device Package | 24-QSOP |
| Number of Circuits | 3 |
| Current - Supply | 14.5 mA |
| Current - Output / Channel | 60 mA |
| -3db Bandwidth | 350 MHz |
