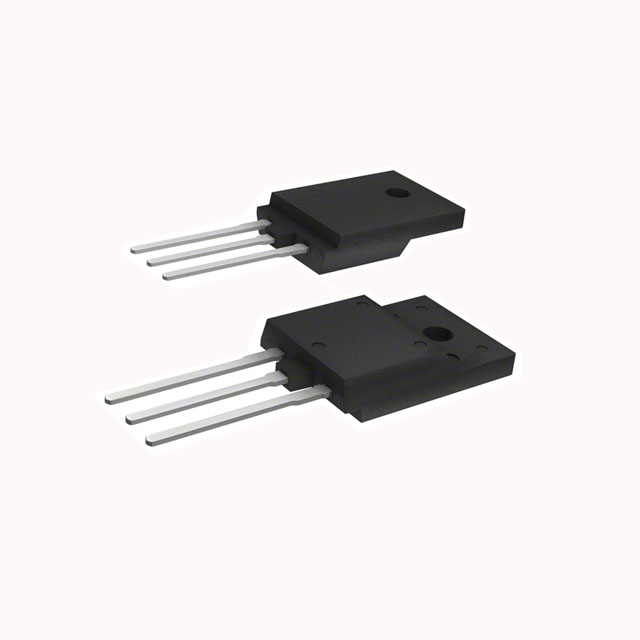

productimage

BCR16PM-16LH-1#C0A

TRIAC 800V 16A TO220F

Manufacturer: Renesas Electronics Corporation

Categories: TRIACs

Quality Control: Learn More

Renesas Electronics Corporation BCR16PM-16LH-1-C0A is a standard TRIAC designed for robust power control applications. This single-configuration component offers an 800V off-state voltage and a maximum on-state current of 16A RMS. The BCR16PM-16LH-1-C0A features a gate trigger current (Igt) not exceeding 35mA and a gate trigger voltage (Vgt) of 1.5V maximum, enabling reliable triggering across various control circuits. It is capable of handling non-repetitive surge currents of 160A at 60Hz. Housed in a TO-220F (TO-220-3 Full Pack) package with a full pack configuration, this TRIAC is suitable for through-hole mounting. Operating across an ambient temperature range of -40°C to 150°C (TJ), it finds application in industrial automation, appliance control, and lighting control systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tube
Technical Details:
PackagingTube
Package / CaseTO-220-3 Full Pack
Mounting TypeThrough Hole
Triac TypeStandard
ConfigurationSingle
Operating Temperature-40°C ~ 150°C (TJ)
Current - Gate Trigger (Igt) (Max)35 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)160A @ 60Hz
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Supplier Device PackageTO-220F
Current - On State (It (RMS)) (Max)16 A
Voltage - Off State800 V
