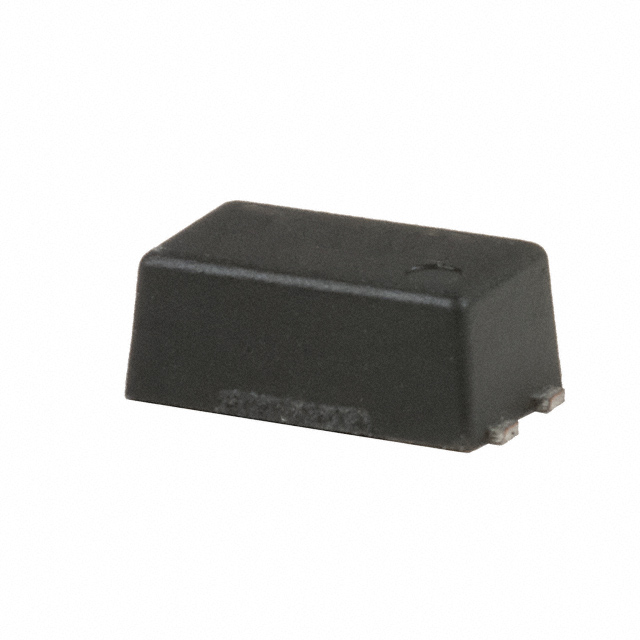

PS2911-1-AX
OPTOISOLATOR 2.5KV TRANS 4-SMDManufacturer: Renesas Electronics Corporation
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation PS2911-1-AX is a single-channel optoisolator featuring a transistor output. This component provides 2500Vrms isolation and is housed in a 4-SMD, flat leads package (4-Mini-Flat). It supports a DC input with a typical forward voltage (Vf) of 1.1V and a maximum forward current (If) of 50 mA. The output stage offers a maximum saturation voltage (Vce Sat) of 300mV and can handle an output current of 40 mA per channel. Achieving a high current transfer ratio (CTR) of up to 400% at 1mA input, it offers a minimum CTR of 100% at the same input current. Typical turn-on and turn-off times are 40µs and 120µs respectively, with rise and fall times of 5µs and 10µs. Operating across a temperature range of -55°C to 100°C, this device is suitable for applications in industrial automation, power supplies, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 4-SMD, Flat Leads |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 40mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Supplier Device Package | 4-Mini-Flat |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | 40µs, 120µs |
| Rise / Fall Time (Typ) | 5µs, 10µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
