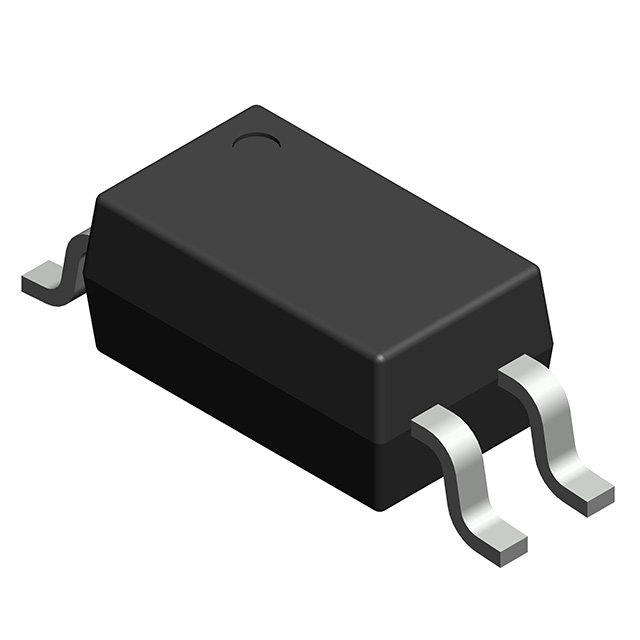

PS2702-1-F3-A
OPTOISOLATOR 3.75KV DARL 4SMDManufacturer: Renesas Electronics Corporation
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Darlington Output 3750Vrms 1 Channel 4-SOP
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Darlington |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 200mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 200% @ 1mA |
| Vce Saturation (Max) | 1V |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 4-SOP |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 200µs, 200µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
