EL7583IREZ-T13
IC REG CONV LCD 2OUT 20HTSSOPManufacturer: Renesas Electronics Corporation
Categories: Special Purpose Regulators
Quality Control: Learn More

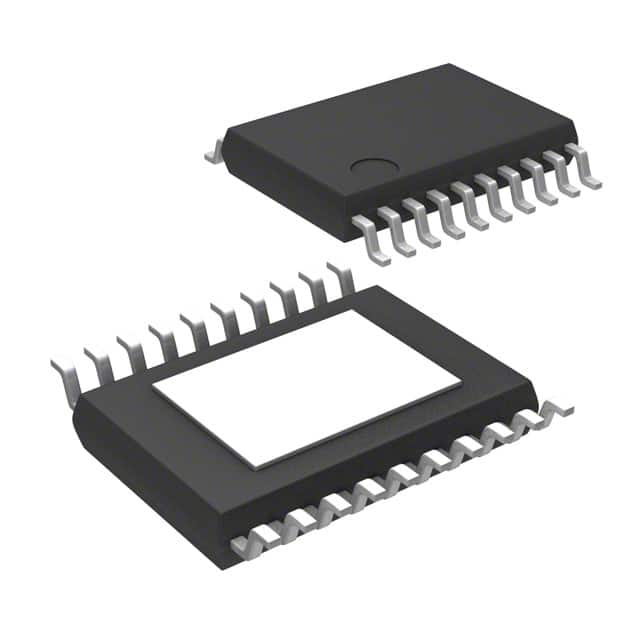

Renesas Electronics Corporation EL7583IREZ-T13 is a dual-output TFT LCD voltage regulator IC. Designed for surface mount applications, this component provides two configurable outputs, capable of generating voltages ranging from 5V to 17V from an input voltage range of 2.7V to 14V. The device is housed in a 20-HTSSOP package with an exposed pad, measuring 4.40mm in width, and is supplied on tape and reel. Its operating temperature range is -40°C to 85°C. This regulator is a key component in converter applications for Thin-Film Transistor Liquid Crystal Displays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Voltage - Output | 5V ~ 17V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Voltage - Input | 2.7V ~ 14V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, TFT LCD |
| Supplier Device Package | 20-HTSSOP |
