EL7520ILZ-T7
IC REG CTRLR TFT 4OUT 20QFNManufacturer: Renesas Electronics Corporation
Categories: Special Purpose Regulators
Quality Control: Learn More
Renesas Electronics Corporation EL7520ILZ-T7 is a 4-output TFT LCD voltage regulator controller. This surface-mount component, housed in a 20-QFN (4x4) package, operates within an input voltage range of 3V to 5.5V. The EL7520ILZ-T7 is designed for applications requiring precise voltage regulation for Thin-Film Transistor Liquid Crystal Displays. Its efficient design and multiple outputs make it suitable for use in display driver circuits within the consumer electronics and automotive sectors. The device is supplied on a tape and reel for automated assembly processes and is rated for operation across an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

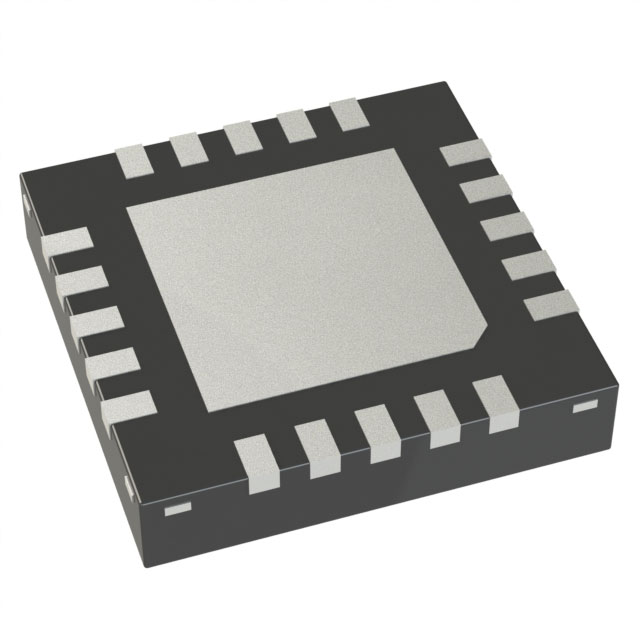

| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Voltage - Input | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Controller, TFT LCD |
| Supplier Device Package | 20-QFN (4x4) |
