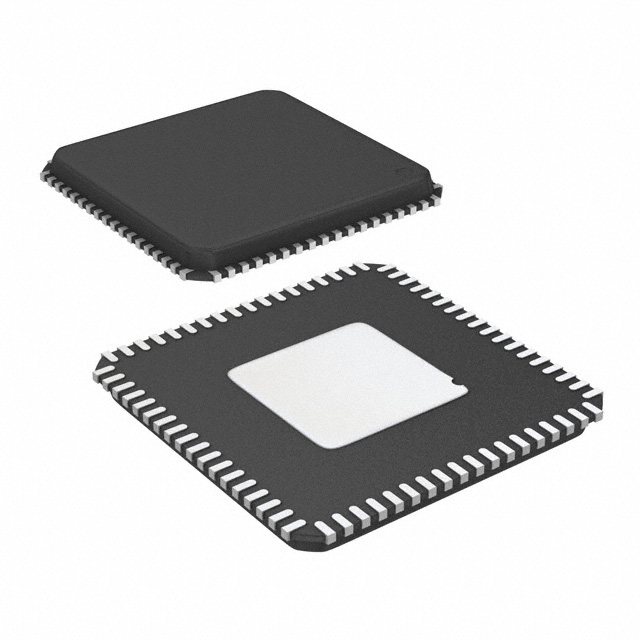

ISL59530IRZ
IC VIDEO CROSSPOINT SWITCH 72QFNManufacturer: Renesas Electronics Corporation
Categories: Special Purpose
Quality Control: Learn More
Renesas Electronics Corporation ISL59530IRZ is a high-performance video crosspoint switch designed for demanding video signal routing applications. This 1-channel device offers a 16:16 crosspoint matrix, enabling flexible and efficient distribution of video signals. With a -3dB bandwidth of 300MHz, the ISL59530IRZ effectively handles high-frequency video content with minimal signal degradation. Control is managed via an SPI interface, providing precise configuration of signal paths.
Constructed with a 72-QFN (10x10) exposed pad package, this component is optimized for surface mounting. The operating temperature range of -40°C to 85°C ensures reliable performance in various environmental conditions. The ISL59530IRZ finds application in professional video broadcast equipment, medical imaging systems, and high-end display technologies where robust video switching is paramount. The single supply voltage requirement is 4.5V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | SPI |
| Packaging | Tray |
| Package / Case | 72-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 72-QFN (10x10) |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:16 |
| Number of Channels | 1 |
