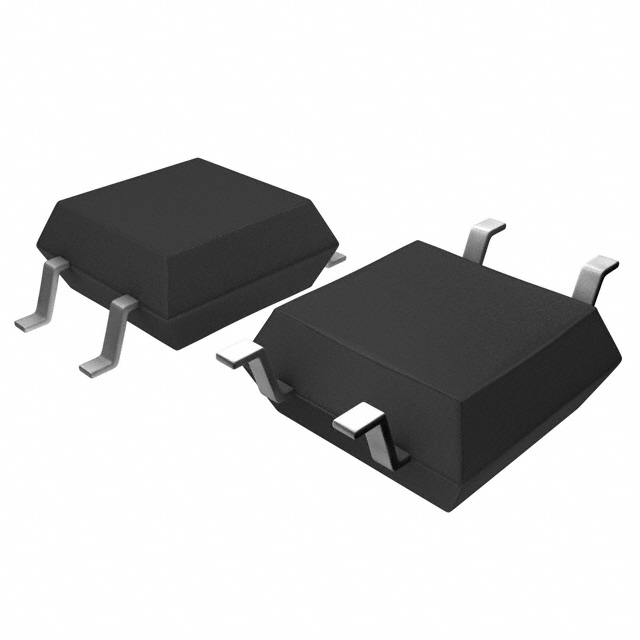

PS7241-1A-F3-A
SSR RELAY SPST-NO 120MA 0-400VManufacturer: Renesas Electronics Corporation
Categories: Solid State Relays (SSR)
Quality Control: Learn More
Renesas Electronics Corporation PS7241-1A-F3-A is a Solid State Relay (SSR) from the PS, OCMOS series. This component features a Single Pole Single Throw Normally Open (SPST-NO) configuration, offering 1 Form A switching. It is designed for surface mounting with a 4-SOP package, measuring 4.40mm. The device supports both AC and DC output types with a maximum load current of 120 mA and an on-state resistance of 30 Ohms. The input voltage requirement is 1.2VDC, and it can handle load voltages ranging from 0V to 400V. Termination is via gull wing. This SSR is utilized in applications requiring high-reliability switching, including industrial automation and telecommunications.
Additional Information
Series: PS, OCMOSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SOP (0.173"", 4.40mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Termination Style | Gull Wing |
| Load Current | 120 mA |
| Supplier Device Package | 4-SOP (2.54mm) |
| Voltage - Load | 0 V ~ 400 V |
| On-State Resistance (Max) | 30 Ohms |
Request a Quote
Clients Also Buy
PS7141-2A-A
SSR RELAY SPST-NO 150MA 0-400V

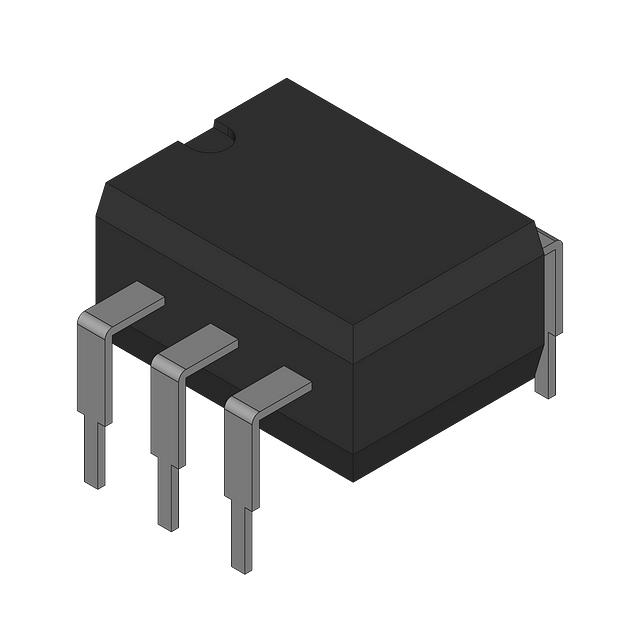

PS7160-1A-A
SSR RELAY SPST-NO 90MA 0-600V

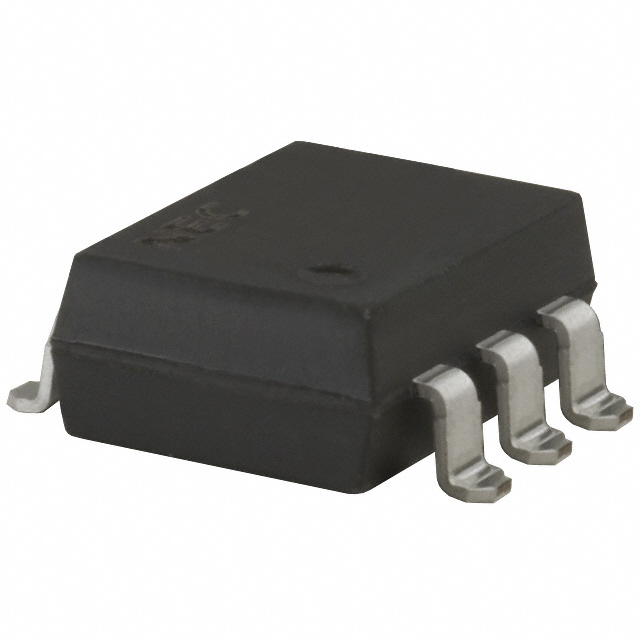

PS7160L-1A-A
