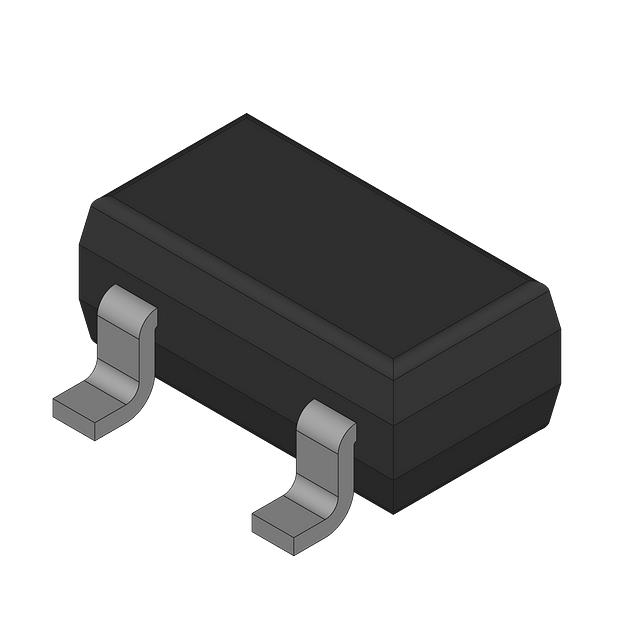

FN4A4P-T1B-A
0.1A, PNPManufacturer: Renesas Electronics Corporation
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 200 mW Surface Mount SC-59
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 95 @ 50mA, 5V |
| Supplier Device Package | SC-59 |
| Grade | - |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 200 mW |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Qualification | - |
