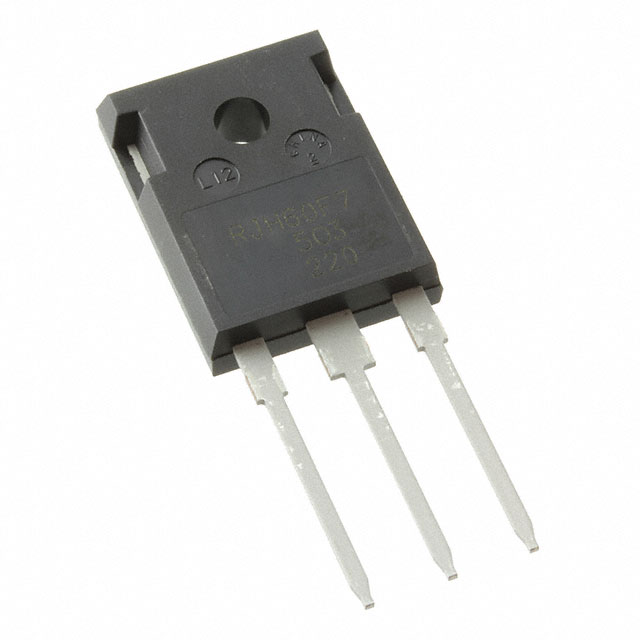

RJH60D5BDPQ-E0#T2
IGBT TRENCH 600V 75A TO247Manufacturer: Renesas Electronics Corporation
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench 600 V 75 A 200 W Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 25 ns |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 37A |
| Supplier Device Package | TO-247 |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 50ns/130ns |
| Switching Energy | 400µJ (on), 810µJ (off) |
| Test Condition | 300V, 37A, 5Ohm, 15V |
| Gate Charge | 78 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 200 W |
