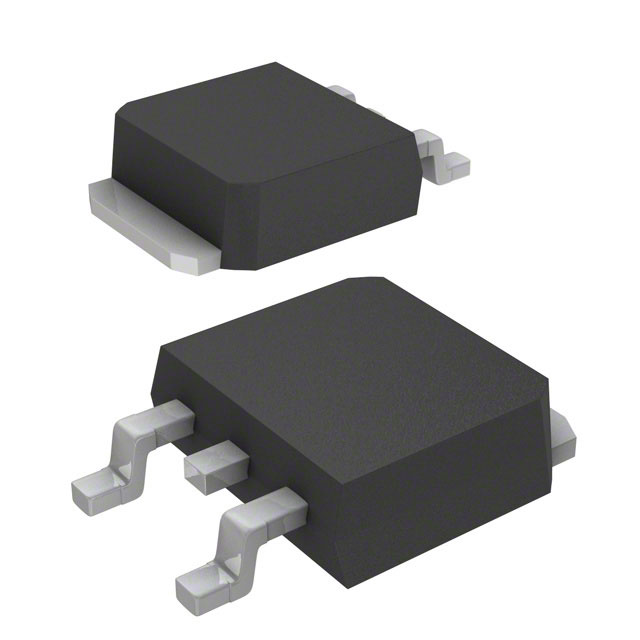

RJK5030DPD-00#J2
MOSFET N-CH 500V 5A MP3AManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 500 V 5A (Ta) 41.7W (Tc) Surface Mount MP-3A
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 41.7W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | MP-3A |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 500 V |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 25 V |
Request a Quote
