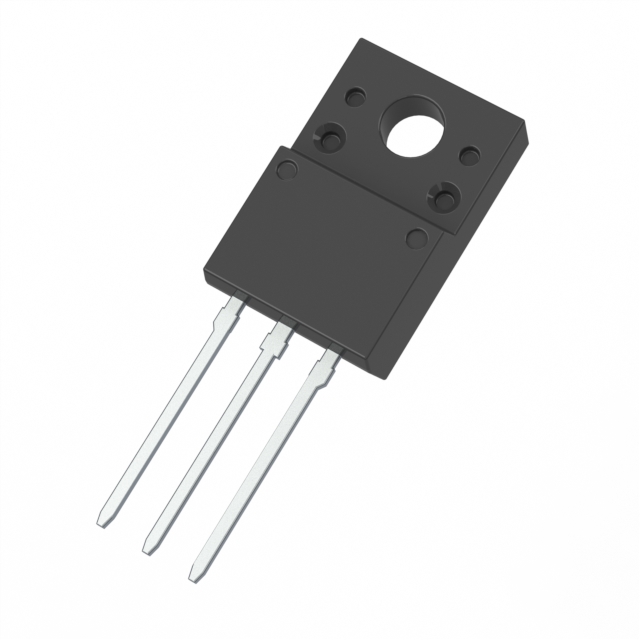

RJK1001DPP-A0#T2
MOSFET N-CH 100V 80A TO220FPAManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 80A (Ta) 30W (Ta) Through Hole TO-220ABA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 80A (Ta) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 40A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Ta) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-220ABA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 147 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10000 pF @ 10 V |
