RJK0659DPA-00#J5A
MOSFET N-CH 60V 30A 8WPAKManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More

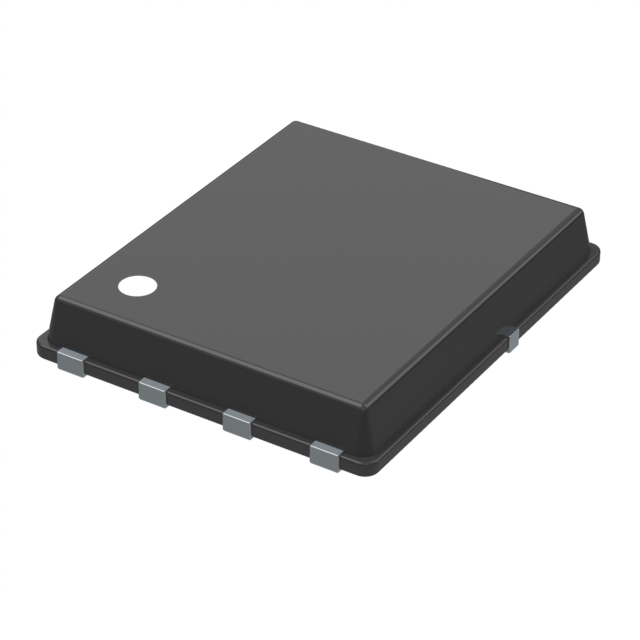

N-Channel 60 V 30A (Ta) 55W (Tc) Surface Mount 8-WPAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 55W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 8-WPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 30.6 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 10 V |
