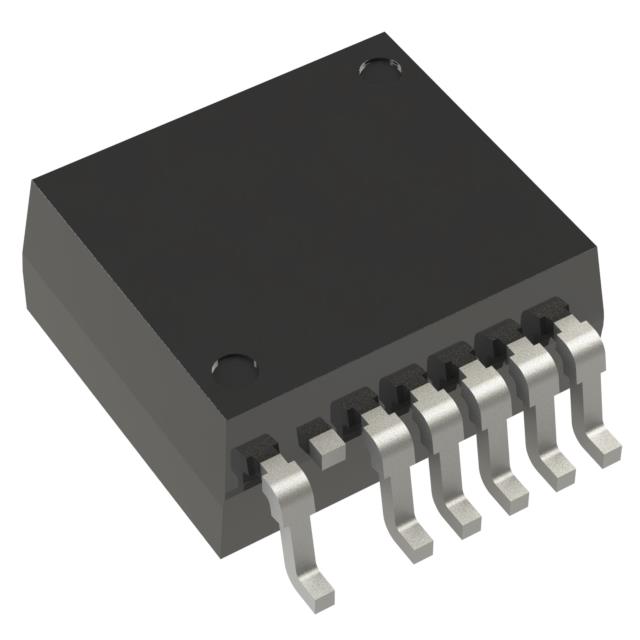

RBA250N04AHPF-4UA01#GB0
POWER TRS2 AUTOMOTIVE MOS MP-25LManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 250A (Tc) 1.8W (Ta), 348W (Tc) Surface Mount TO-263-7
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 250A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.85mOhm @ 125A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta), 348W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-263-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 368 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 19350 pF @ 25 V |
| Qualification | AEC-Q101 |
