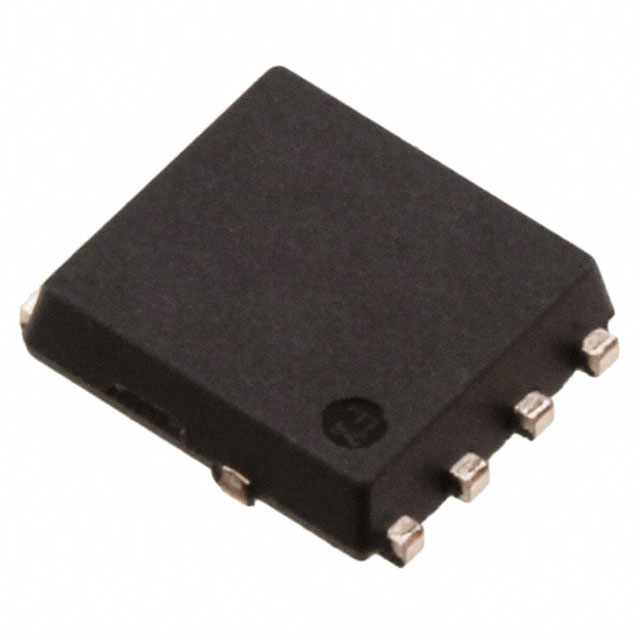

NP74N04YUG-E1-AY
MOSFET N-CH 40V 75A 8HSONManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 75A (Tc) 1W (Ta), 120W (Tc) Surface Mount 8-HSON
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Lead Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 37.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta), 120W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-HSON |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 96 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5430 pF @ 25 V |
Request a Quote
