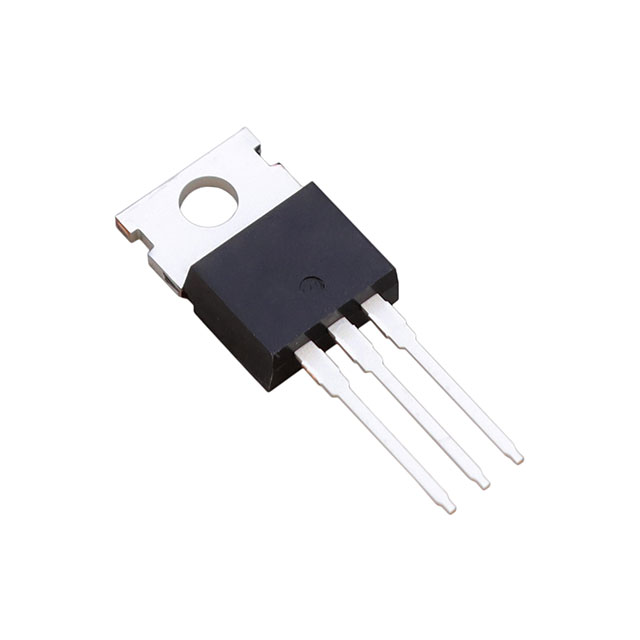

N0602N-S19-AY
MOSFET N-CH 60V 100A TO220-3Manufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 100A (Tc) 1.5W (Ta), 156W (Tc) Through Hole TO-220-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Isolated Tab |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta), 156W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | TO-220-3 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 133 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7730 pF @ 25 V |
| Qualification | - |
